Finding Homography Matrix using Singular-value Decomposition and RANSAC in OpenCV and Matlab

\(\)

Solving a Homography problem leads to solving a set of homogeneous linear equations such below:

\begin{equation}
\left(
\begin{array}{ccccccccc}
-x1 & -y1 & -1 & 0 & 0 & 0 & x1*xp1 & y1*xp1 & xp1\\
0 & 0 & 0 & -x1 & -y1 & -1 & x1*yp1 & y1*yp1 & yp1\\
-x2 & -y2 & -1 & 0 & 0 & 0 & x2*xp2 & y2*xp2 & xp2\\
0 & 0 & 0 & -x2 & -y2 & -1 & x2*yp2 & y2*yp2 & yp2\\
-x3 & -y3 & -1 & 0 & 0 & 0 & x3*xp3 & y3*xp3 & xp3\\
0 & 0 & 0 & -x3 & -y3 & -1 & x3*yp3 & y3*yp3 & yp3\\
-x4 & -y4 & -1 & 0 & 0 & 0 & x4*xp4 & y4*xp4 & xp4\\
0 & 0 & 0 & -x4 & -y4 & -1 & x4*yp4 & y4*yp4 & yp4\\
\end{array}
\right) *H=0
\end{equation}

\( H^{*} \underset{H}{\mathrm{argmin}}= \|AH\|^{2} \) subject to \( \|H\|=1 \)

We can’t use least square since it’s a homogeneous linear equations (the other side of equation is 0 therfore we can’t just multyly it by the psudo inverse). To solve this problem we use Singular-value Decomposition (SVD).

For any given matrix \( A_{M{\times}N} \)

\begin{equation}
\underbrace{\mathbf{A}}_{M \times N} = \underbrace{\mathbf{U}}_{M \times M} \times \underbrace{\mathbf{\Sigma}}_{M\times N} \times \underbrace{\mathbf{V}^{\text{T}}}_{N \times N}
\end{equation}

\(U\) is an \( {M\times M} \) matrix with orthogonal matrix (columns are eigen vectors of A).
\(\Sigma\) is an \( {M\times N} \) matrix with non-negative entries, termed the singular values (diagonal entries are eigen values of A).
\(V \) is an \( {N\times N} \) orthogonal matrix.

\( H^{*} \) is the last column of \(V \)

Finding homography matrix in Matlab between 4 pairs of points

function H=homography(x1,y1,x2,y2,x3,y3,x4,y4 , xp1,yp1,xp2,yp2,xp3,yp3,xp4,yp4)
%This function will find the homography betweeb 4 points using svd


A=[
-x1  -y1  -1   0    0    0   x1*xp1   y1*xp1   xp1;
 0    0    0 -x1   -y1  -1   x1*yp1   y1*yp1   yp1;
-x2  -y2  -1   0    0    0   x2*xp2   y2*xp2   xp2;
 0    0    0 -x2   -y2  -1   x2*yp2   y2*yp2   yp2;
-x3  -y3  -1   0    0    0   x3*xp3   y3*xp3   xp3;
 0    0    0 -x3   -y3  -1   x3*yp3   y3*yp3   yp3;
-x4  -y4   -1  0    0    0   x4*xp4   y4*xp4   xp4;
 0    0    0  -x4  -y4  -1   x4*yp4   y4*yp4   yp4];

[U,S,V] = svd(A);


H=V(:,end);
H=reshape(H,3,3);

function H=homography(x1,y1,x2,y2,x3,y3,x4,y4 , xp1,yp1,xp2,yp2,xp3,yp3,xp4,yp4)

%This function will find the homography betweeb 4 points using svd

A=[

-x1 -y1 -1 0 0 0 x1*xp1 y1*xp1 xp1;

0 0 0 -x1 -y1 -1 x1*yp1 y1*yp1 yp1;

-x2 -y2 -1 0 0 0 x2*xp2 y2*xp2 xp2;

0 0 0 -x2 -y2 -1 x2*yp2 y2*yp2 yp2;

-x3 -y3 -1 0 0 0 x3*xp3 y3*xp3 xp3;

0 0 0 -x3 -y3 -1 x3*yp3 y3*yp3 yp3;

-x4 -y4 -1 0 0 0 x4*xp4 y4*xp4 xp4;

0 0 0 -x4 -y4 -1 x4*yp4 y4*yp4 yp4];

[U,S,V] = svd(A);

H=V(:,end);

H=reshape(H,3,3);

%This script will find the homography between 4 points and their repsective
%projection

%These points are for vertex of a square in world cordinate system, the
%lengh of square is 150
x0=0;
y0=0;

x1=150;
y1=0;

x2=150;
y2=150;

x3=0;
y3=150;

%The projected position of points
xp0=100;
yp0=100;

xp1=200;
yp1=80;

xp2=220;
yp2=80;

xp3=100;
yp3=200;

fprintf('Estimated homography matrix is:')
H=homography(x0,y0, x1,y1, x2,y2, x3,y3, xp0,yp0, xp1,yp1, xp2,yp2,xp3,yp3)

p0=[x0,y0; x1,y1 ; x2,y2 ; x3,y3];
p1=[xp0,yp0; xp1,yp1; xp2,yp2; xp3,yp3];

%We project the point (x2 y2) by H and we should get (xp2 yp2)
projected_point=[x2 y2 1] * H;
projected_point(1,1)/projected_point(1,3)
projected_point(1,2)/projected_point(1,3)

%This script will find the homography between 4 points and their repsective

%projection

%These points are for vertex of a square in world cordinate system, the

%lengh of square is 150

x0=0;

y0=0;

x1=150;

y1=0;

x2=150;

y2=150;

x3=0;

y3=150;

%The projected position of points

xp0=100;

yp0=100;

xp1=200;

yp1=80;

xp2=220;

yp2=80;

xp3=100;

yp3=200;

fprintf('Estimated homography matrix is:')

H=homography(x0,y0, x1,y1, x2,y2, x3,y3, xp0,yp0, xp1,yp1, xp2,yp2,xp3,yp3)

p0=[x0,y0; x1,y1 ; x2,y2 ; x3,y3];

p1=[xp0,yp0; xp1,yp1; xp2,yp2; xp3,yp3];

%We project the point (x2 y2) by H and we should get (xp2 yp2)

projected_point=[x2 y2 1] * H;

projected_point(1,1)/projected_point(1,3)

projected_point(1,2)/projected_point(1,3)

Finding homography matrix in OpenCV between 4 pairs of points

void get_homographyMatrix()
{
    std::vector<cv::Point2f> obj;
    std::vector<cv::Point2f> scene;
    std::vector<cv::Point2f> obj_projection;

    cv::Point2f A,B,C,D,A_P,B_P,C_P,D_P ;
    A.x=0;
    A.y=0;

    B.x=150;
    B.y=0;

    C.x=150;
    C.y=150;

    D.x=0;
    D.y=150;

    obj.push_back(A);
    obj.push_back(B);
    obj.push_back(C);
    obj.push_back(D);


    A_P.x=100;
    A_P.y=100;

    B_P.x=200;
    B_P.y=80;

    C_P.x=220;
    C_P.y=80;

    D_P.x=100;
    D_P.y=200;

    scene.push_back(A_P);
    scene.push_back(B_P);
    scene.push_back(C_P);
    scene.push_back(D_P);

    cv::Mat homography_matrix= cv::getPerspectiveTransform(obj,scene);
    std::cout<<"Estimated Homography Matrix is:" <<std::endl;
    std::cout<< homography_matrix <<std::endl;

    perspectiveTransform( obj, obj_projection, homography_matrix);
    for(std::size_t i=0;i<obj_projection.size();i++)
    {
        std::cout<<obj_projection.at(i).x <<"," <<obj_projection.at(i).y<<std::endl;
    }
}

void get_homographyMatrix()

{

std::vector<cv::Point2f> obj;

std::vector<cv::Point2f> scene;

std::vector<cv::Point2f> obj_projection;

cv::Point2f A,B,C,D,A_P,B_P,C_P,D_P ;

A.x=0;

A.y=0;

B.x=150;

B.y=0;

C.x=150;

C.y=150;

D.x=0;

D.y=150;

obj.push_back(A);

obj.push_back(B);

obj.push_back(C);

obj.push_back(D);

A_P.x=100;

A_P.y=100;

B_P.x=200;

B_P.y=80;

C_P.x=220;

C_P.y=80;

D_P.x=100;

D_P.y=200;

scene.push_back(A_P);

scene.push_back(B_P);

scene.push_back(C_P);

scene.push_back(D_P);

cv::Mat homography_matrix= cv::getPerspectiveTransform(obj,scene);

std::cout<<"Estimated Homography Matrix is:" <<std::endl;

std::cout<< homography_matrix <<std::endl;

perspectiveTransform( obj, obj_projection, homography_matrix);

for(std::size_t i=0;i<obj_projection.size();i++)

{

std::cout<<obj_projection.at(i).x <<"," <<obj_projection.at(i).y<<std::endl;

}

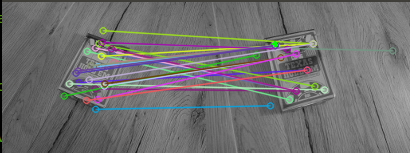

Finding homography matrix in OpenCV between N pairs of points

void findHomography_Test(int argc, char** argv)
{
//	The input arrays src_points and dst_points can be either
//		1)N-by-2(pixel coordinates) matrices
//		2)N-by-3 (homogeneous coordinates)	matrices
//	The final argument, homography, is just a 	3-by-3 matrix to


//	void cvFindHomography(const CvMat* src_points, 	const CvMat* dst_points, 	CvMat* 	homography 	);
    if( argc != 3 )
    {
        printf(" Usage: ./main_Homography <img1> <img2>\n");
        return;
    }

    Mat img_object = imread( argv[1], CV_LOAD_IMAGE_GRAYSCALE );
    Mat img_scene = imread( argv[2], CV_LOAD_IMAGE_GRAYSCALE );

    if( !img_object.data || !img_scene.data )
    {
        printf(" --(!) Error reading images \n"); return ;
    }

    //-- Step 1: Detect the keypoints using SURF Detector
    int minHessian = 400;

    SurfFeatureDetector detector( minHessian );

    std::vector<KeyPoint> keypoints_object, keypoints_scene;

    detector.detect( img_object, keypoints_object );
    detector.detect( img_scene, keypoints_scene );

    //-- Step 2: Calculate descriptors (feature vectors)
    SurfDescriptorExtractor extractor;

    Mat descriptors_object, descriptors_scene;

    extractor.compute( img_object, keypoints_object, descriptors_object );
    extractor.compute( img_scene, keypoints_scene, descriptors_scene );

    //-- Step 3: Matching descriptor vectors using FLANN matcher
    FlannBasedMatcher matcher;
    std::vector< DMatch > matches;
    matcher.match( descriptors_object, descriptors_scene, matches );

    double max_dist = 0; double min_dist = 100;

    //-- Quick calculation of max and min distances between keypoints
    for( int i = 0; i < descriptors_object.rows; i++ )
    {   double dist = matches[i].distance;
        if( dist < min_dist ) min_dist = dist;
        if( dist > max_dist ) max_dist = dist;
    }

    printf("-- Max dist : %f \n", max_dist );
    printf("-- Min dist : %f \n", min_dist );

    //-- Draw only "good" matches (i.e. whose distance is less than 3*min_dist )
    std::vector< DMatch > good_matches;

    for( int i = 0; i < descriptors_object.rows; i++ )
    { if( matches[i].distance < 1.5*min_dist )
        {
            good_matches.push_back( matches[i]);
        }
    }

    Mat img_matches;
    drawMatches( img_object, keypoints_object, img_scene, keypoints_scene,
    good_matches, img_matches, Scalar::all(-1), Scalar::all(-1),
    vector<char>(), DrawMatchesFlags::NOT_DRAW_SINGLE_POINTS );


    //-- Localize the object from img_1 in img_2
    std::vector<Point2f> obj;
    std::vector<Point2f> scene;

    for( size_t i = 0; i < good_matches.size(); i++ )
    {
    //-- Get the keypoints from the good matches
        obj.push_back( keypoints_object[ good_matches[i].queryIdx ].pt );
        scene.push_back( keypoints_scene[ good_matches[i].trainIdx ].pt );
    }

    Mat H = findHomography( obj, scene, CV_RANSAC );

    //-- Get the corners from the image_1 ( the object to be "detected" )
    std::vector<Point2f> obj_corners(4);
    obj_corners[0] = Point(0,0); obj_corners[1] = Point( img_object.cols, 0 );
    obj_corners[2] = Point( img_object.cols, img_object.rows ); obj_corners[3] = Point( 0, img_object.rows );
    std::vector<Point2f> scene_corners(4);

    perspectiveTransform( obj_corners, scene_corners, H);


    //-- Draw lines between the corners (the mapped object in the scene - image_2 )
    Point2f offset( (float)img_object.cols, 0);
    line( img_matches, scene_corners[0] + offset, scene_corners[1] + offset, Scalar(0, 255, 0), 4 );
    line( img_matches, scene_corners[1] + offset, scene_corners[2] + offset, Scalar( 0, 255, 0), 4 );
    line( img_matches, scene_corners[2] + offset, scene_corners[3] + offset, Scalar( 0, 255, 0), 4 );
    line( img_matches, scene_corners[3] + offset, scene_corners[0] + offset, Scalar( 0, 255, 0), 4 );

    //-- Show detected matches
    imshow( "Good Matches & Object detection", img_matches );

    waitKey(0);

    return ;
}

100

101

102

103

104

105

106

107

108

109

110

void findHomography_Test(int argc, char** argv)

{

// The input arrays src_points and dst_points can be either

// 1)N-by-2(pixel coordinates) matrices

// 2)N-by-3 (homogeneous coordinates) matrices

// The final argument, homography, is just a 3-by-3 matrix to

// void cvFindHomography(const CvMat* src_points, const CvMat* dst_points, CvMat* homography );

if( argc != 3 )

{

printf(" Usage: ./main_Homography <img1> <img2>\n");

return;

}

Mat img_object = imread( argv[1], CV_LOAD_IMAGE_GRAYSCALE );

Mat img_scene = imread( argv[2], CV_LOAD_IMAGE_GRAYSCALE );

if( !img_object.data || !img_scene.data )

{

printf(" --(!) Error reading images \n"); return ;

}

//-- Step 1: Detect the keypoints using SURF Detector

int minHessian = 400;

SurfFeatureDetector detector( minHessian );

std::vector<KeyPoint> keypoints_object, keypoints_scene;

detector.detect( img_object, keypoints_object );

detector.detect( img_scene, keypoints_scene );

//-- Step 2: Calculate descriptors (feature vectors)

SurfDescriptorExtractor extractor;

Mat descriptors_object, descriptors_scene;

extractor.compute( img_object, keypoints_object, descriptors_object );

extractor.compute( img_scene, keypoints_scene, descriptors_scene );

//-- Step 3: Matching descriptor vectors using FLANN matcher

FlannBasedMatcher matcher;

std::vector< DMatch > matches;

matcher.match( descriptors_object, descriptors_scene, matches );

double max_dist = 0; double min_dist = 100;

//-- Quick calculation of max and min distances between keypoints

for( int i = 0; i < descriptors_object.rows; i++ )

{ double dist = matches[i].distance;

if( dist < min_dist ) min_dist = dist;

if( dist > max_dist ) max_dist = dist;

}

printf("-- Max dist : %f \n", max_dist );

printf("-- Min dist : %f \n", min_dist );

//-- Draw only "good" matches (i.e. whose distance is less than 3*min_dist )

std::vector< DMatch > good_matches;

for( int i = 0; i < descriptors_object.rows; i++ )

{ if( matches[i].distance < 1.5*min_dist )

{

good_matches.push_back( matches[i]);

}

Mat img_matches;

drawMatches( img_object, keypoints_object, img_scene, keypoints_scene,

good_matches, img_matches, Scalar::all(-1), Scalar::all(-1),

vector<char>(), DrawMatchesFlags::NOT_DRAW_SINGLE_POINTS );

//-- Localize the object from img_1 in img_2

std::vector<Point2f> obj;

std::vector<Point2f> scene;

for( size_t i = 0; i < good_matches.size(); i++ )

{

//-- Get the keypoints from the good matches

obj.push_back( keypoints_object[ good_matches[i].queryIdx ].pt );

scene.push_back( keypoints_scene[ good_matches[i].trainIdx ].pt );

}

Mat H = findHomography( obj, scene, CV_RANSAC );

//-- Get the corners from the image_1 ( the object to be "detected" )

std::vector<Point2f> obj_corners(4);

obj_corners[0] = Point(0,0); obj_corners[1] = Point( img_object.cols, 0 );

obj_corners[2] = Point( img_object.cols, img_object.rows ); obj_corners[3] = Point( 0, img_object.rows );

std::vector<Point2f> scene_corners(4);

perspectiveTransform( obj_corners, scene_corners, H);

//-- Draw lines between the corners (the mapped object in the scene - image_2 )

Point2f offset( (float)img_object.cols, 0);

line( img_matches, scene_corners[0] + offset, scene_corners[1] + offset, Scalar(0, 255, 0), 4 );

line( img_matches, scene_corners[1] + offset, scene_corners[2] + offset, Scalar( 0, 255, 0), 4 );

line( img_matches, scene_corners[2] + offset, scene_corners[3] + offset, Scalar( 0, 255, 0), 4 );

line( img_matches, scene_corners[3] + offset, scene_corners[0] + offset, Scalar( 0, 255, 0), 4 );

//-- Show detected matches

imshow( "Good Matches & Object detection", img_matches );

waitKey(0);

return ;

}

Applying homography matrix in OpenCV

// We need 4 corresponding 2D points(x,y) to calculate homography.
vector<Point2f> left_image;      // Stores 4 points(x,y) of the logo image. Here the four points are 4 corners of image.
vector<Point2f> right_image;    // stores 4 points that the user clicks(mouse left click) in the main image.

// Image containers for main and logo image
Mat imageMain;
Mat imageLogo;

// Function to add main image and transformed logo image and show final output.
// Icon image replaces the pixels of main image in this implementation.
void showFinal(Mat src1,Mat src2)
{

    Mat gray,gray_inv,src1final,src2final;
    cvtColor(src2,gray,CV_BGR2GRAY);
    threshold(gray,gray,0,255,CV_THRESH_BINARY);
    //adaptiveThreshold(gray,gray,255,ADAPTIVE_THRESH_MEAN_C,THRESH_BINARY,5,4);
    bitwise_not ( gray, gray_inv );
    src1.copyTo(src1final,gray_inv);
    src2.copyTo(src2final,gray);
    Mat finalImage = src1final+src2final;
    namedWindow( "output", WINDOW_AUTOSIZE );
    imshow("output",finalImage);
    cvWaitKey(0);

}

// Here we get four points from the user with left mouse clicks.
// On 5th click we output the overlayed image.
void on_mouse( int e, int x, int y, int d, void *ptr )
{
    if (e == EVENT_LBUTTONDOWN )
    {
        if(right_image.size() < 4 )
        {

            right_image.push_back(Point2f(float(x),float(y)));
            cout << x << " "<< y <<endl;
        }
        else
        {
            cout << " Calculating Homography " <<endl;
            // Deactivate callback
            cv::setMouseCallback("Display window", NULL, NULL);
            // once we get 4 corresponding points in both images calculate homography matrix
            Mat H = findHomography(  left_image,right_image,0 );
            Mat logoWarped;
            // Warp the logo image to change its perspective
            warpPerspective(imageLogo,logoWarped,H,imageMain.size() );
            showFinal(imageMain,logoWarped);

        }

    }
}

/*
How to run:
./main  ../images/homography/main.jpg ../images/homography/logo.jpg
*/
int homographyPerspective_Test( int argc, char** argv )
{
//  We need tow argumemts. "Main image" and "logo image"
    if( argc != 3)
    {
        cout <<" Usage: error" << endl;
        return -1;
    }


// Load images from arguments passed.
    imageMain = imread(argv[1], CV_LOAD_IMAGE_COLOR);
    imageLogo = imread(argv[2], CV_LOAD_IMAGE_COLOR);
// Push the 4 corners of the logo image as the 4 points for correspondence to calculate homography.
    left_image.push_back(Point2f(float(0),float(0)));
    left_image.push_back(Point2f(float(0),float(imageLogo.rows)));
    left_image.push_back(Point2f(float(imageLogo.cols),float(imageLogo.rows)));
    left_image.push_back(Point2f(float(imageLogo.cols),float(0)));



    namedWindow( "Display window", WINDOW_AUTOSIZE );// Create a window for display.
    imshow( "Display window", imageMain );


    setMouseCallback("Display window",on_mouse, NULL );


//  Press "Escape button" to exit
    while(1)
    {
        int key=cvWaitKey(10);
        if((char)key==(char)27) break;
    }


    return 0;
}

// We need 4 corresponding 2D points(x,y) to calculate homography.

vector<Point2f> left_image; // Stores 4 points(x,y) of the logo image. Here the four points are 4 corners of image.

vector<Point2f> right_image; // stores 4 points that the user clicks(mouse left click) in the main image.

// Image containers for main and logo image

Mat imageMain;

Mat imageLogo;

// Function to add main image and transformed logo image and show final output.

// Icon image replaces the pixels of main image in this implementation.

void showFinal(Mat src1,Mat src2)

{

Mat gray,gray_inv,src1final,src2final;

cvtColor(src2,gray,CV_BGR2GRAY);

threshold(gray,gray,0,255,CV_THRESH_BINARY);

//adaptiveThreshold(gray,gray,255,ADAPTIVE_THRESH_MEAN_C,THRESH_BINARY,5,4);

bitwise_not ( gray, gray_inv );

src1.copyTo(src1final,gray_inv);

src2.copyTo(src2final,gray);

Mat finalImage = src1final+src2final;

namedWindow( "output", WINDOW_AUTOSIZE );

imshow("output",finalImage);

cvWaitKey(0);

}

// Here we get four points from the user with left mouse clicks.

// On 5th click we output the overlayed image.

void on_mouse( int e, int x, int y, int d, void *ptr )

{

if (e == EVENT_LBUTTONDOWN )

{

if(right_image.size() < 4 )

{

right_image.push_back(Point2f(float(x),float(y)));

cout << x << " "<< y <<endl;

}

else

{

cout << " Calculating Homography " <<endl;

// Deactivate callback

cv::setMouseCallback("Display window", NULL, NULL);

// once we get 4 corresponding points in both images calculate homography matrix

Mat H = findHomography( left_image,right_image,0 );

Mat logoWarped;

// Warp the logo image to change its perspective

warpPerspective(imageLogo,logoWarped,H,imageMain.size() );

showFinal(imageMain,logoWarped);

}

How to run:

./main ../images/homography/main.jpg ../images/homography/logo.jpg

int homographyPerspective_Test( int argc, char** argv )

{

// We need tow argumemts. "Main image" and "logo image"

if( argc != 3)

{

cout <<" Usage: error" << endl;

return -1;

}

// Load images from arguments passed.

imageMain = imread(argv[1], CV_LOAD_IMAGE_COLOR);

imageLogo = imread(argv[2], CV_LOAD_IMAGE_COLOR);

// Push the 4 corners of the logo image as the 4 points for correspondence to calculate homography.

left_image.push_back(Point2f(float(0),float(0)));

left_image.push_back(Point2f(float(0),float(imageLogo.rows)));

left_image.push_back(Point2f(float(imageLogo.cols),float(imageLogo.rows)));

left_image.push_back(Point2f(float(imageLogo.cols),float(0)));

namedWindow( "Display window", WINDOW_AUTOSIZE );// Create a window for display.

imshow( "Display window", imageMain );

setMouseCallback("Display window",on_mouse, NULL );

// Press "Escape button" to exit

while(1)

{

int key=cvWaitKey(10);

if((char)key==(char)27) break;

}

return 0;

}

4.8 5 votes

Article Rating

This site uses Akismet to reduce spam. Learn how your comment data is processed.

3 Comments

Oldest

Newest Most Voted

Inline Feedbacks

View all comments

Elihu Nyemah

3 years ago

do you do home works for students

Author

admin

Reply to Elihu Nyemah

No sorry, got no free time 🙂

kishor

1 year ago

can you do a video on the mathematics for “what is SVD” as well? you seem to have a good grasp on mathematics.

Cookie	Duration	Description
cookielawinfo-checbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.
